EMM-4L-96
EMM-4L-96 CT connection. LCD. Modbus. THD analysis. Pulses output.

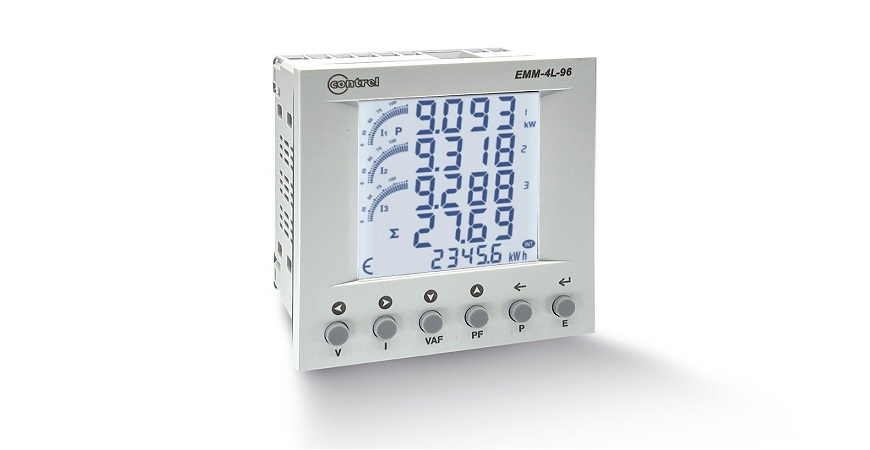

Flush-mounted multifunction power meter with backlit LCD, auxiliary power supply 85 ... 264 VAC, integrated RS485 serial port, pulse output
| Introduction |
| Range |
EMM |
| Product name |
EMM-4L-96 |
| Product type |
Power meter |
| Technical characteristics |
| Device application |
Energy and power monitoring
Multi-tariff |
| Type of measurement |
True RMS
Active and reactive power
Apparent power
Current
Voltage
Energy
Power factor
Frequency
Total current harmonic distortion THD (I)
Total voltage harmonic distortion THD (V)
|
| Supply voltage |
100...240 VAC |
| Network requency |
45-65 Hz |
| Rated current [In] |
5 A
1 A |
| Wiring connection |
1P
2P
3P + N
3P
ARON |
| Power consumption |
< 8 VA |
| Display type |
Backlight LCD |
| Measurement voltage |
11-300 VAC (L-N)
19-519 VAC (L-L) |
| Measurement current |
0,010...1,2 A for CT /1A
0,010...6 A for CT /5A |
| Frequency measurement range |
45-65 Hz |
| Measurements refresh |
1 second |
| Measurement accuracy |
Voltage 0,5% f.s.
Current 0,5% f.s.
Frequency 0,1%
Active power 1%
Reactive power 1% |
| Accuracy class |
Class 1 active energy |
| Communication port |
RS485 |
| Communication protocol |
Modbus RTU 300...19200 bps |
| Number of outputs |
1 |
| Mounting mode |
Flush mount 96x96X50 mm |
| Standards |
IEC/EN61010, IEC/EN62053-31
IEC/EN62053-21, IEC/EN62053-23
IEC/EN61326-1, IEC/EN55011 Class A, IEC/EN61000-4-2,-3,-4,-5,-6,-8,-11 |
| Weight |
318g |
| Environment |
| IP degree of protection |
IP54 on front
IP20 terminals |
| Relative humidity |
0...85% |
| Operating temperature |
-10...+55 °C |
| Storage temperature |
-20...+70 °C |
|
|
