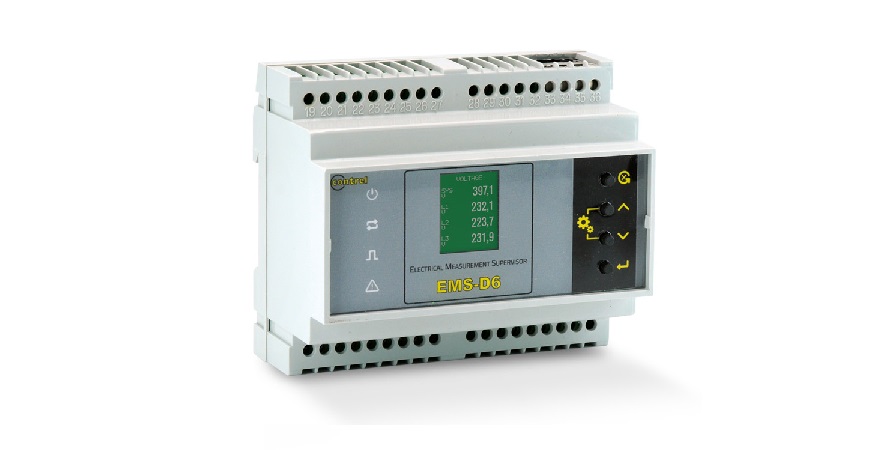

EMS-D6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Introduction | |
|---|---|
| Range | EMS |
| Product name | EMS-D6 |
| Product type | Multifunction power meter |
| Technical characteristics | |
|---|---|
| Device application | Energy and power monitoring Multi-tariff Sub-billing |
| Power quality analysis | Up to the 21st harmonic |
| Type of measurement | True RMS Active and reactive power Apparent power Current Voltage Energy Power factor Frequency Total current harmonic distortion THD (I) Total voltage harmonic distortion THD (V) |
| Supply voltage | 90...250 VAC/DC 20...60 VAC / 24...85 VDC (optional) |
| Network requency | 50 Hz 60 Hz |
| Rated current [In] | 5 A 1 A |
| Wiring connection | 1P 2P 3P + N 3P 3P balanced ARON |
| Power consumption | 10 VA |
| Display type | Backlight LCD |
| Measurement current | 0,050...5 A with CT /5A 0,010...1 A with CT /1A |
| Measurement voltage | 30-400 V phase to neutral 50-690 V phase to phase |
| Frequency measurement range | 40-70 Hz |
| Measurement refresh | 1000 ms |
| Neutral current input | Measured Calculated |
| Accuracy class | Class 1 active energy conforming to IEC 62053-22 Class 0.5S active energy conforming to IEC 62053-22 (optional) Class 0.2S active energy conforming to IEC 62053-22 (optional) |
| Communication port | RS485 |
| Communication protocol | Modbus a 4,8...115,2 kbauds |
| Number of outputs | 2 |
| Mounting mode | DIN rail 6 modules |
| Standards | CEI EN 61000-6-2:2006 CEI EN 61000-6-4:2007 CEI EN 61010-1:2013 |
| Weight | 450g |
| Environment | |
|---|---|
| IP degree of protection | IP40 on front IP20 terminals |
| Relative humidity | 5...95% |
| Operating temperature | -25...+70 °C |
| Storage temperature | -30...+80 °C |
| Options | |
|---|---|
| Amperometric inputs from pre-wired compact sensors | |
| Amperometric inputs from Rogowski sensors | |
| Number of digital inputs | 2 |
| Number of digital outputs | 2 4 |
| Communication protocol | Ethernet Modbus TCP/IP |
