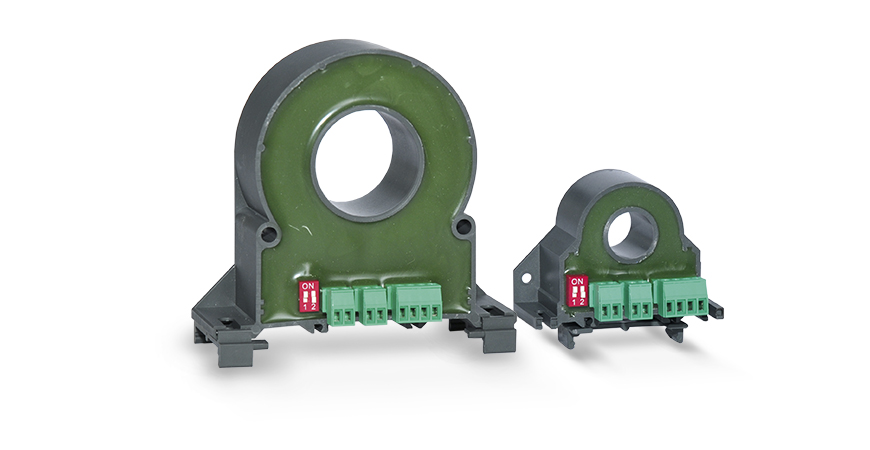

EMT-1C
EMT-1C Power meter which is able to measure AC/DC currents
Single-phase network analyzer, AC/DC current, accuracy 0.5%, THD, bidirectional energy, RS485 port.
| Introduction |
| Range |
EMT |
| Product name |
EMT-1C |
| Product type |
Multifunction power meter |
| Technical characteristics |
| Device application |
Energy and power monitoring
Transducer
Photovoltaic plant |
| Type of measurement |
True RMS
Active and reactive power
Apparent power
Current
Voltage
Energy
Power factor
Frequency
Total current harmonic distortion THD (I)
Total voltage harmonic distortion THD (V)
|
| Supply voltage |
9...30 VDC |
| Power consumption |
1,3 W |
| Measurement current |
50 A AC/DC (version EMT-1C/50)
300 A AC/400 A DC (version EMT-1C/300) |
| Measurement voltage |
800 VAC / 1000 VDC
80 VAC / 100 VDC (version EMT-1C/.. LV) |
| Frequency measurement range |
30-1000 Hz
DC |
| Measurement accuracy |
Voltage +/- 0.5 %
Current+/- 0.5 %
Active power +/- 0.5 %
Frequency +/- 0,1 Hz
Energy +/- 0,1 % |
| Communication port |
RS485 |
| Communication protocol |
Modbus a 1,2...115,2 kbauds |
| Mounting mode |
DIN rail |
| Standards |
EN 61000-6-4/2007-01
EN 64000-6-2
EN 61010-1/2001 |
| Weight |
72g |
| Environment |
| IP degree of protection |
IP20 |
| Relative humidity |
5...90% |
| Operating temperature |
-15...+65 °C |
| Storage temperature |
-40...+85 °C |
| Options |
| Low Voltage (Voltage up to 80 VAC or 100 VDC) |
|
|
