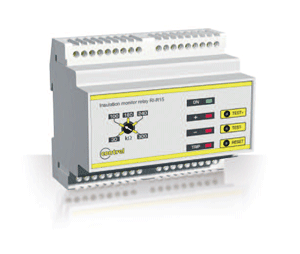

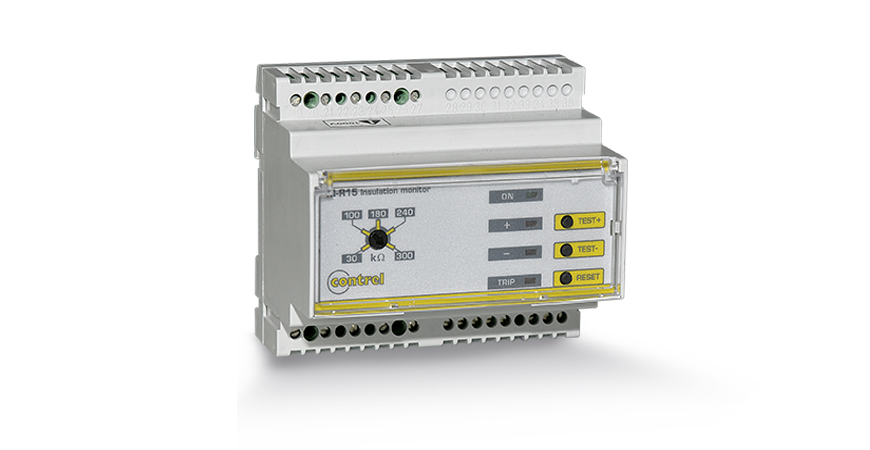

RI-R15
DEVICE FOR PERMANENT INSULATIONCONTROL
VERSION FOR NEUTRAL NETWORKS (IT) UP TO 1000VDC
MODEL
RI-R15 300V power supply and network to control 300Vdc (network 280÷340Vdc)
RI-R15 500V power supply and network to control 500Vdc (network 400÷600Vdc)
RI-R15 1000V power supply and network to control 1000Vdc (network 600÷1000Vdc) including ARI-R15external adapter
------------------------------------------------------------------------------------------------------------------------------------------------------------------------
RI-R15 Insulation monitoring for fault detection of IT network up to 600 VDC
Insulation monitoring devices for fault detection network up to 600 VDC, 1000 VDC with adapter, Damaged pole LED indication, trip relay standard or fail-safe, auto or manual reset
| Introduction |
| Range |
RI |
| Product name |
RI-R15 |
| Product type |
Insulation monitoring device |
| Application |
Production plant protection
Motor protection
Transformation lines protection
Photovoltaic
Marine |
| Earthing system |
IT |
| Technical characteristics |
| Network voltage |
280...340 VDC |
| Auxiliary supply |
280...340 VDC |
| Power consumption |
6 VA |
| Type of measurement |
Network insulation resistance |
| Intervention threshold |
Trip: 30...300 kOhm |
| Response time |
1,5...2,5 s |
| Measurement current |
1 mA |
| Internal impedance |
450 kOhm L/PE |
| Reset function |
Auto
Manual |
| Test function |
Local |
| Output relay |
1 changeover (TRIP)
5 A (240 VAC)
Standard or fail-safe selectable |
| Local signalling |
Green LED (power ON)
Red LED (TRIP)
Yellow LED (ALARM)
Damaged pole LED |
| Mounting mode |
DIN rail 6 modules |
| Standards |
CEI-EN 61010-1
CEI-EN 61557-8
CEI-EN 61326-1 |
| Weight |
400g |
| Environment |
| IP degree of protection |
Front IP40 with cover
IP20 terminals |
| Relative humidity |
5...90% |
| Operating temperature |
-10...+60 °C |
| Storage temperature |
-20...+70 °C |
| Opzioni |
| network voltage |
400...600 VDC (RI-R15 500V)
600...1000 VDC (with adapater ARI-R15) |
| Auxiliary supply |
400...600 VDC (RI-R15 500V)
600...1000 VDC (with adapater ARI-R15) |
|
